Oetiker 15400037 Stainless Steel Hose Clamp 13.1-15.3mm One Ear with Insert - Pack of 250 for Automotive, Plumbing & Industrial Applications

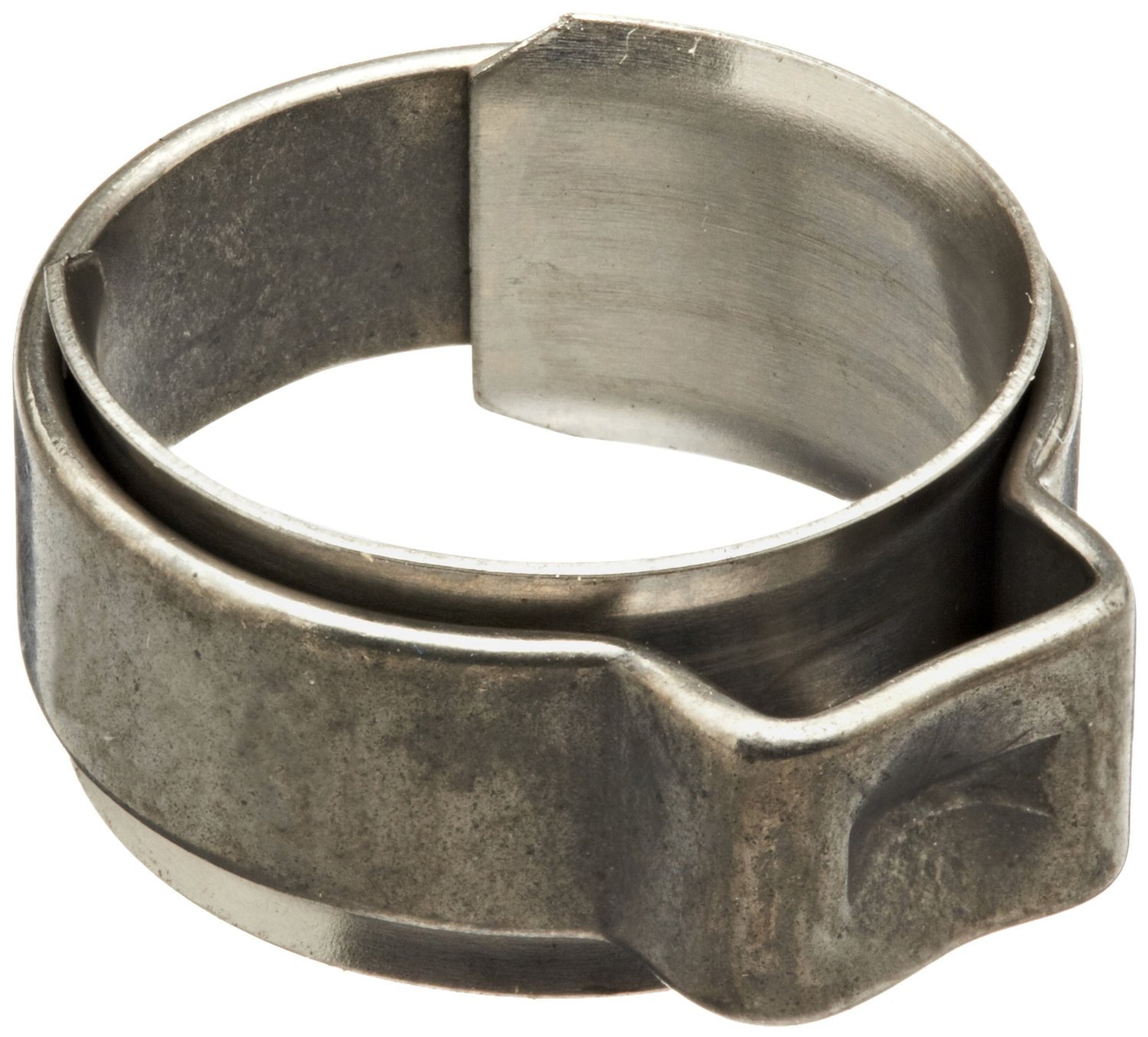

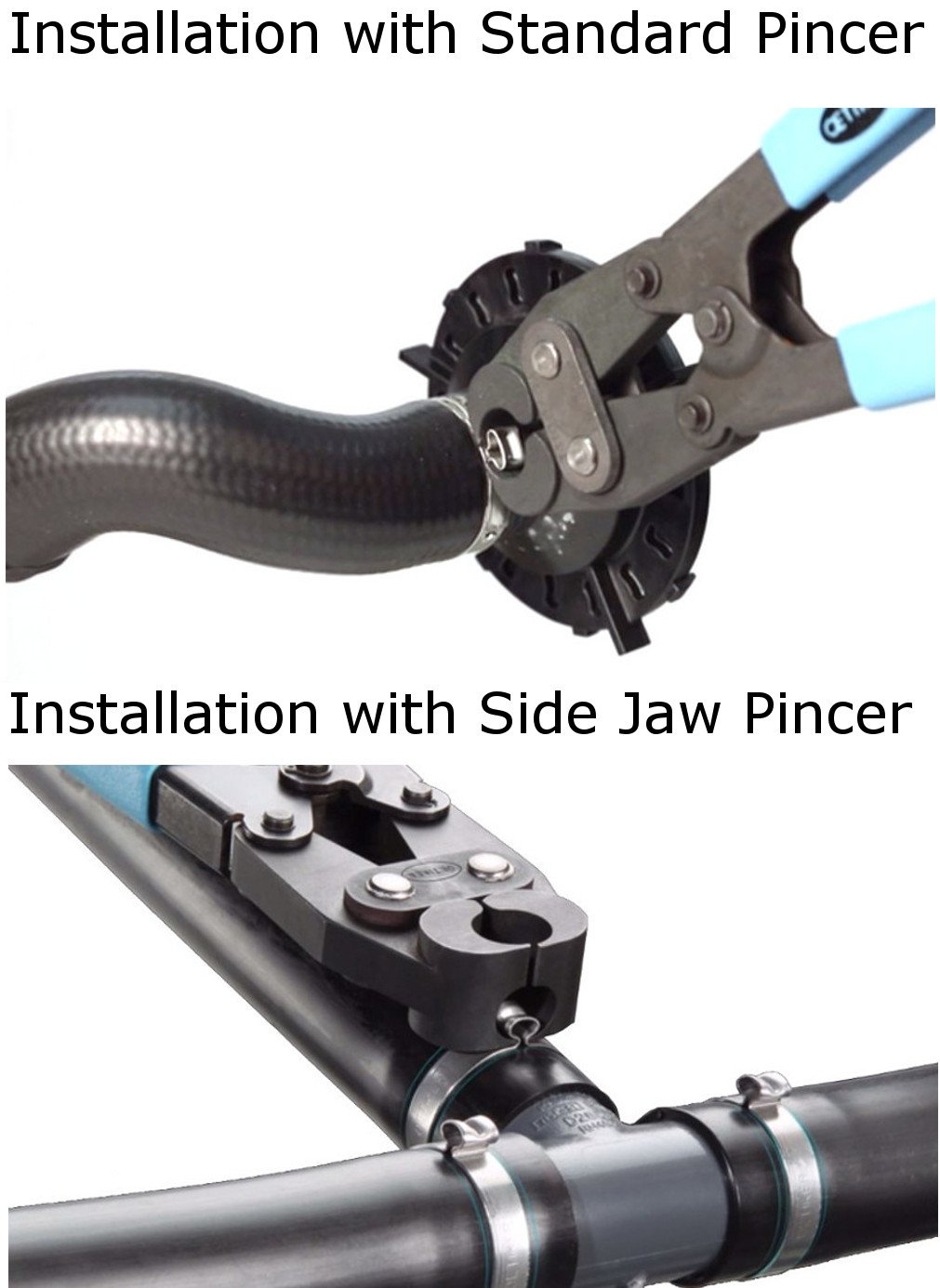

Oetiker 1-Ear Clamps with insert This type of clamp combines the geometry and properties of the 1-Ear Clamp with an insert made of stainless steel. These clamps are ideal for demanding applications involving soft or hard rubbers and plastics. The thin-walled insert ring (up to 0.3 mm thick), with an oval protrusion that locates in the ear space, bridges the ear gap and ensures almost uniform compression around the whole circumference of a clamp. Clamp diameter The following applies as a guideline: To determine the correct clamp diameter, push the hose onto the attaching material, (e.g. the nipple), and then measure the outer diameter of the hose. The value of the outer diameter must be slightly above the average value of the diameter range of the clamp to be selected. The listed size of the clamp denotes the inner diameter (id) of the clamp. How to Install These clamps can be easily installed using Oetiker Hand Installation Pincers (HIP). The HIP tools have been designed especially for pinching ear clamps quickly and easily. Oetiker HIP Compound Action, Standard Jaw Pincer, Item No. 14100386Oetiker HIP Compound Action Side Jaw Pincer, Item No. 14100387Oetiker HIP Single Action Standard Jaw Pincer, Item No. 14100396How to Remove Ear clamps can be easily removed using Oetiker’s hand clamp cutter (HCC). The HCC tool is designed to safely remove ear clamps. Oetiker Hand Clamp Cutter, Item No. 14100407Please Note: The clamps included in this kit are not designed or intended for use in PEX applications. The sizing references for PEX clamps are not the same as standard Oetiker clamps. Oetiker PEX Clamps should be used for PEX applications.

Compact one-piece clamp for robust, secure connections, miniature sizes

Clamp ear fast and simple assembly, visible deformation provides evidence of proper closure.

Deburred edges reduced risk of damage to parts being clamped

Pre-shaped insert effective and powerful all-round seal

Stainless Steel, material no. 1.4307/UNS S30403
