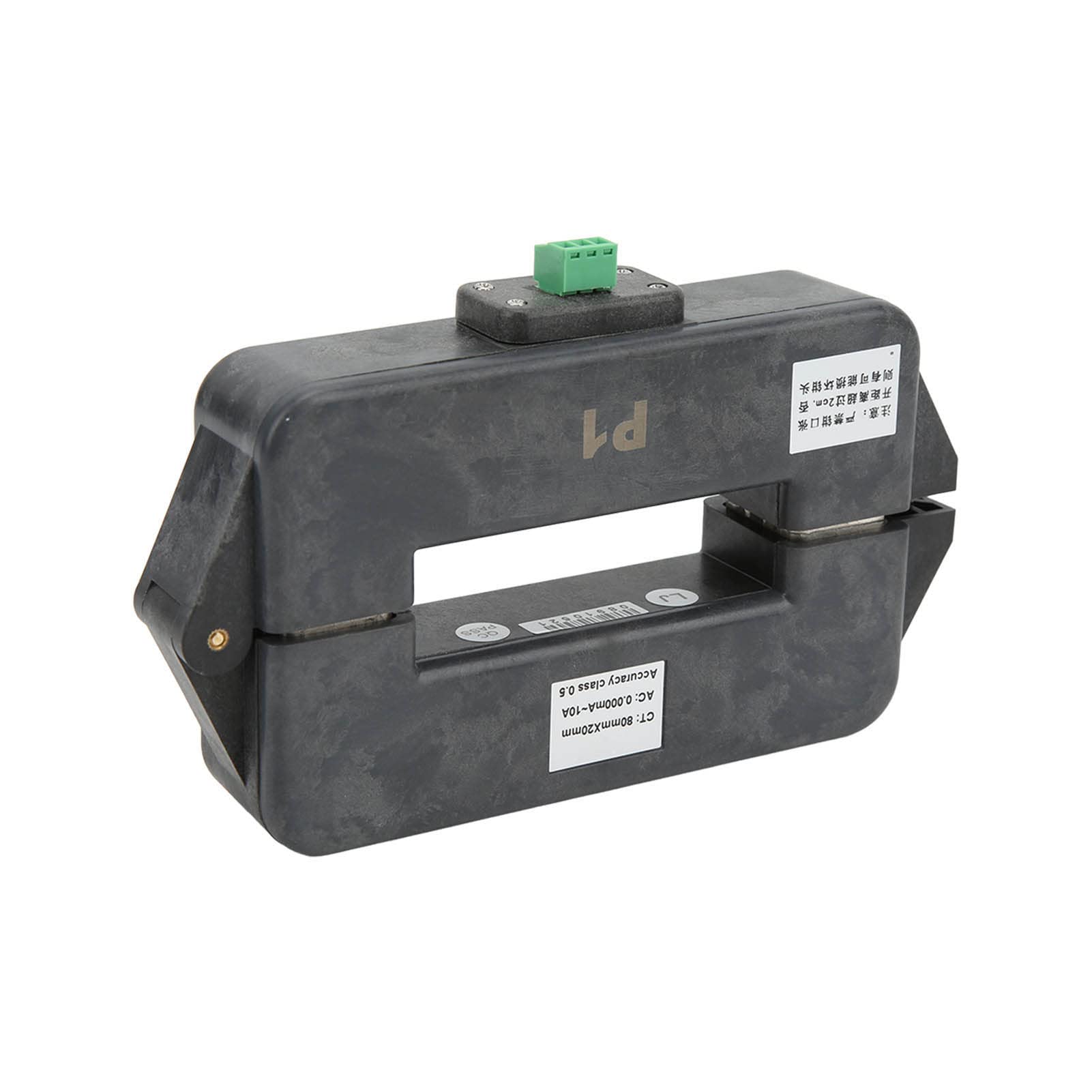

Agatige AC Current Sensor Transformer - High Accuracy Clamp CT Technology for Leakage Current Detection | Ideal for Home Energy Monitoring, Industrial Equipment & Electrical Safety Applications

Specification:Item Type: Leakage Current SensorModel: 080KUMaterial: ABS+permalloyApplication: Widely used in electric power, communications, meteorology, railways, oil fields, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fieldsFunction: AC leakage current, high order harmonic current, phase, power factor, etc. detection. Leakage current online test of arrester and insulatorDetection Method: Open close structure, no need to disconnect the tested circuit, especially suitable for online installationCT Size: Approx. 80 x 20 mm / 3.1 x 0.8 inMeasuring Range: 0.000mA~10A ACResolution: 1uA ACAccuracy Level: 0.5Transformation Ratio: 1000:1Phase Error: ≤1°Secondary Load: ≤15ΩShielding: Double layer shielding, suitable for complex interference environmentOutput Mode: Current sensing outputOutput Interface: 3P pluggable terminal blockFrequency: 10Hz~100KHzSafety Level: CAT Ⅲ 600VProtection Level: IP65Working Temperature: -15°C~60°CInsulation Strength: AC 3700V/rms (between iron core and shell)Package List:1 x Leakage Current SensorNote:Please match or replace the corresponding connector according to the interface of the instrument used, otherwise it cannot be used. The line body used should meet the range to avoid damage.

ABS: The clamp current transformer is made of high-quality ABS material, durable and safe, and can be connected to phase detection analyzers, industrial control equipment, data recorders, oscilloscopes, harmonic analyzers, power quality analyzers, high-precision digital multimeters, etc.

Multi-function ammeter: current transformer clip can be used for high-precision AC leakage current, high-order harmonic current, phase, electric energy, power, power factor, etc. detection

Non-contact measurement: leakage current sensor adopts new CT technology, portable clamp design, no need to disconnect the line under test, non-contact measurement, safe and fast

Double-layer shielding technology: The current transformer instrument adopts double-layer shielding technology, and the influence of external magnetic field is extremely small, which ensures high precision, high stability and high reliability of uninterrupted measurement throughout the year

Wide range of applications: current transformers are widely used in electric power, communications, meteorology, railways, oil fields, construction, metering, scientific research and teaching units, industrial and mining enterprises and other fields
